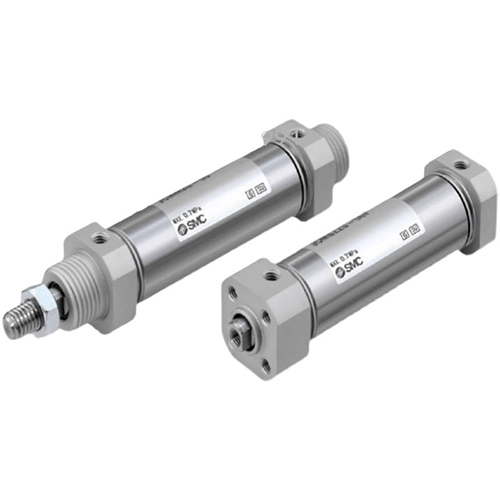

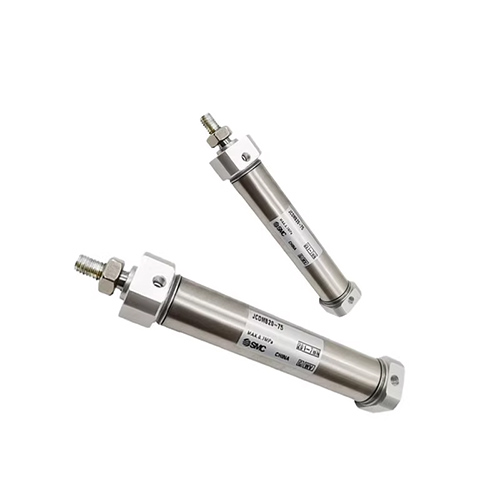

JCMB25 Standard cylinder

Browse:

1. Add foot type and flange type [New]
2. The overall length is shortened to a maximum of 97mm
3. The maximum weight reduction is 54% (0.69kg→0.32kg)
4. A variety of end cap shapes can be selected
5. Port size: M5, Rc1/8, NPT1/8 available
6. Optional rod end and rod end thread types
7. With magnetic switch (JCDM series: JCDM)

Click the order code to learn more about each product！ SMC cylinder JCM, JCDMBZ, JCDMB, JCDMM, JCDMMZ overall dimensions sample parameter selection manual

Order code	×	Attributes	Sale price (excluding tax)	Sale price (including tax)
1586438	JCMB25TN-25F	Maximum operating pressure:0.7Mpa Minimum operating pressure:0.05Mpa Ambient temperature:-5℃-60℃	$27.43 Current Valid Price	$31
1586439	JCMB25TN-25	Maximum operating pressure:0.7Mpa Minimum operating pressure:0.05Mpa Ambient temperature:-5℃-60℃	$27.43 Current Valid Price	$31
1586440	JCMB25TN-50F	Maximum operating pressure:0.7Mpa Minimum operating pressure:0.05Mpa Ambient temperature:-5℃-60℃	$28.80 Current Valid Price	$32.54
1586441	JCMB25TN-50	Maximum operating pressure:0.7Mpa Minimum operating pressure:0.05Mpa Ambient temperature:-5℃-60℃	$28.80 Current Valid Price	$32.54
1586442	JCMB25TN-75F	Maximum operating pressure:0.7Mpa Minimum operating pressure:0.05Mpa Ambient temperature:-5℃-60℃	$30.34 Current Valid Price	$34.28
1586443	JCMB25TN-75	Maximum operating pressure:0.7Mpa Minimum operating pressure:0.05Mpa Ambient temperature:-5℃-60℃	$30.34 Current Valid Price	$34.28
1586444	JCMB25TN-100F	Maximum operating pressure:0.7Mpa Minimum operating pressure:0.05Mpa Ambient temperature:-5℃-60℃	$31.71 Current Valid Price	$35.83
1586445	JCMB25TN-100	Maximum operating pressure:0.7Mpa Minimum operating pressure:0.05Mpa Ambient temperature:-5℃-60℃	$31.71 Current Valid Price	$35.83
1586446	JCMB25TN-125	Maximum operating pressure:0.7Mpa Minimum operating pressure:0.05Mpa Ambient temperature:-5℃-60℃	$33.09 Current Valid Price	$37.39
1586447	JCMB25TN-125F	Maximum operating pressure:0.7Mpa Minimum operating pressure:0.05Mpa Ambient temperature:-5℃-60℃	$33.09 Current Valid Price	$37.39
1586448	JCMB25TN-150F	Maximum operating pressure:0.7Mpa Minimum operating pressure:0.05Mpa Ambient temperature:-5℃-60℃	$34.63 Current Valid Price	$39.13
1586449	JCMB25TN-150	Maximum operating pressure:0.7Mpa Minimum operating pressure:0.05Mpa Ambient temperature:-5℃-60℃	$34.63 Current Valid Price	$39.13
1586450	JCMB25TN-200	Maximum operating pressure:0.7Mpa Minimum operating pressure:0.05Mpa Ambient temperature:-5℃-60℃	$37.37 Current Valid Price	$42.23
1586451	JCMB25TN-250F	Maximum operating pressure:0.7Mpa Minimum operating pressure:0.05Mpa Ambient temperature:-5℃-60℃	$40.29 Current Valid Price	$45.53
1586452	JCMB25TN-250	Maximum operating pressure:0.7Mpa Minimum operating pressure:0.05Mpa Ambient temperature:-5℃-60℃	$40.29 Current Valid Price	$45.53
1586453	JCMB25TN-300	Maximum operating pressure:0.7Mpa Minimum operating pressure:0.05Mpa Ambient temperature:-5℃-60℃	$43.20 Current Valid Price	$48.82
1586454	JCMB25TN-300F	Maximum operating pressure:0.7Mpa Minimum operating pressure:0.05Mpa Ambient temperature:-5℃-60℃	$43.20 Current Valid Price	$48.82
1586455	JCMB25-25	Maximum operating pressure:0.7Mpa Minimum operating pressure:0.05Mpa Ambient temperature:-5℃-60℃	$27.43 Current Valid Price	$31
1586456	JCMB25-25F	Maximum operating pressure:0.7Mpa Minimum operating pressure:0.05Mpa Ambient temperature:-5℃-60℃	$27.43 Current Valid Price	$31
1586457	JCMB25-20	Maximum operating pressure:0.7Mpa Minimum operating pressure:0.05Mpa Ambient temperature:-5℃-60℃	$27.43 Current Valid Price	$31
1586458	JCMB25-50F	Maximum operating pressure:0.7Mpa Minimum operating pressure:0.05Mpa Ambient temperature:-5℃-60℃	$28.80 Current Valid Price	$32.54
1586459	JCMB25-50	Maximum operating pressure:0.7Mpa Minimum operating pressure:0.05Mpa Ambient temperature:-5℃-60℃	$28.80 Current Valid Price	$32.54
1586460	JCMB25-30	Maximum operating pressure:0.7Mpa Minimum operating pressure:0.05Mpa Ambient temperature:-5℃-60℃	$28.80 Current Valid Price	$32.54
1586461	JCMB25-75	Maximum operating pressure:0.7Mpa Minimum operating pressure:0.05Mpa Ambient temperature:-5℃-60℃	$30.34 Current Valid Price	$34.28
1586462	JCMB25-75F	Maximum operating pressure:0.7Mpa Minimum operating pressure:0.05Mpa Ambient temperature:-5℃-60℃	$30.34 Current Valid Price	$34.28
1586463	JCMB25-100	Maximum operating pressure:0.7Mpa Minimum operating pressure:0.05Mpa Ambient temperature:-5℃-60℃	$31.71 Current Valid Price	$35.83
1586464	JCMB25-100F	Maximum operating pressure:0.7Mpa Minimum operating pressure:0.05Mpa Ambient temperature:-5℃-60℃	$31.71 Current Valid Price	$35.83
1586465	JCMB25-125F	Maximum operating pressure:0.7Mpa Minimum operating pressure:0.05Mpa Ambient temperature:-5℃-60℃	$33.09 Current Valid Price	$37.39
1586466	JCMB25-125	Maximum operating pressure:0.7Mpa Minimum operating pressure:0.05Mpa Ambient temperature:-5℃-60℃	$33.09 Current Valid Price	$37.39
1586467	JCMB25-150F	Maximum operating pressure:0.7Mpa Minimum operating pressure:0.05Mpa Ambient temperature:-5℃-60℃	$34.63 Current Valid Price	$39.13
