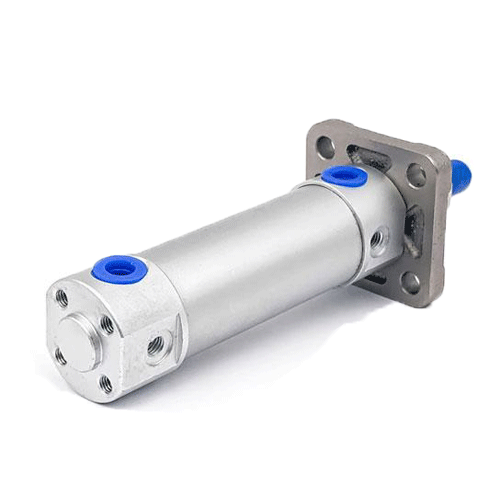

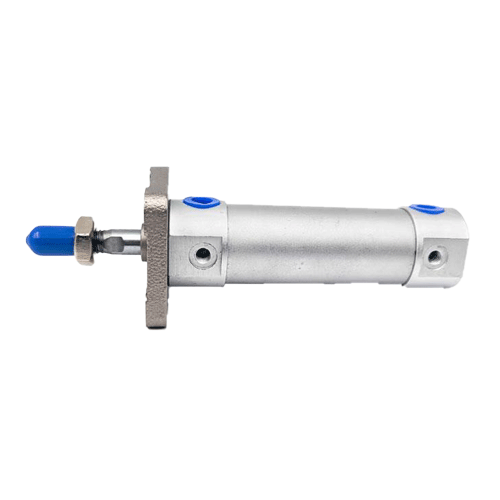

CG1FA80 Rod side flange type standard cylinder
Browse:
1. Standardization of internal threads at rod ends
2. The operability of the magnetic switch is improved and the position is easy to adjust.
3. A screw hole type without trunnion for installation is added to the basic model.
4. The models of rod end mounting parts and swing base mounting parts are set (saving time of ordering cylinders and mounting parts separately)
5. With magnetic switch (CDG1-Z series: CDG1, CDG1W, CDG1K, CDG1KW, CDG1R, CDG1KR, CDBG1)
2. The operability of the magnetic switch is improved and the position is easy to adjust.
3. A screw hole type without trunnion for installation is added to the basic model.
4. The models of rod end mounting parts and swing base mounting parts are set (saving time of ordering cylinders and mounting parts separately)
5. With magnetic switch (CDG1-Z series: CDG1, CDG1W, CDG1K, CDG1KW, CDG1R, CDG1KR, CDBG1)
Click the order code to learn more about each product！ Download: SMC standard cylinder CG1BA, CG1ZA, CG1LA, CG1FA, CG1GA, CG1UA, CG1TA, CG1DA data parameter selection manual
| Order code | Attributes | Sale price (excluding tax) | Sale price (including tax) | Quantity | |
|---|---|---|---|---|---|
| 1476268 | CG1FA80V-160Z | pad buffer:Rc Air buffer:M5X0.8/Rc Rod end thread shape : rod end external thread | $210.34 Current Valid Price | $237.68 | |
| 1476269 | CG1FA80V-400Z | pad buffer:Rc Air buffer:M5X0.8/Rc Rod end thread shape : rod end external thread | $240.00 Current Valid Price | $271.2 | |
| 1476270 | CG1FA80V-600Z | pad buffer:Rc Air buffer:M5X0.8/Rc Rod end thread shape : rod end external thread | $269.66 Current Valid Price | $304.72 | |
| 1476271 | CG1FA80V-510Z | pad buffer:Rc Air buffer:M5X0.8/Rc Rod end thread shape : rod end external thread | $269.66 Current Valid Price | $304.72 | |
| 1476272 | CG1FA80R-165Z-XC6 | pad buffer:Rc Air buffer:M5X0.8/Rc Rod end thread shape : rod end external thread | $176.57 Current Valid Price | $199.52 | |
| 1476273 | CG1FA80R-600Z | pad buffer:Rc Air buffer:M5X0.8/Rc Rod end thread shape : rod end external thread | $220.80 Current Valid Price | $249.5 | |
| 1476274 | CG1FA80-25Z | pad buffer:Rc Air buffer:M5X0.8/Rc Rod end thread shape : rod end external thread | $107.66 Current Valid Price | $121.66 | |
| 1476275 | CG1FA80-23Z | pad buffer:Rc Air buffer:M5X0.8/Rc Rod end thread shape : rod end external thread | $107.66 Current Valid Price | $121.66 | |
| 1476276 | CG1FA80-20Z | pad buffer:Rc Air buffer:M5X0.8/Rc Rod end thread shape : rod end external thread | $107.66 Current Valid Price | $121.66 | |
| 1476277 | CG1FA80-10Z | pad buffer:Rc Air buffer:M5X0.8/Rc Rod end thread shape : rod end external thread | $107.66 Current Valid Price | $121.66 | |
| 1476278 | CG1FA80-50Z | pad buffer:Rc Air buffer:M5X0.8/Rc Rod end thread shape : rod end external thread | $111.43 Current Valid Price | $125.92 | |
| 1476279 | CG1FA80-30Z | pad buffer:Rc Air buffer:M5X0.8/Rc Rod end thread shape : rod end external thread | $111.43 Current Valid Price | $125.92 | |
| 1476280 | CG1FA80-55Z | pad buffer:Rc Air buffer:M5X0.8/Rc Rod end thread shape : rod end external thread | $115.20 Current Valid Price | $130.18 | |
| 1476281 | CG1FA80-75Z | pad buffer:Rc Air buffer:M5X0.8/Rc Rod end thread shape : rod end external thread | $115.20 Current Valid Price | $130.18 | |
| 1476282 | CG1FA80-90Z | pad buffer:Rc Air buffer:M5X0.8/Rc Rod end thread shape : rod end external thread | $118.80 Current Valid Price | $134.24 | |
| 1476283 | CG1FA80-100Z | pad buffer:Rc Air buffer:M5X0.8/Rc Rod end thread shape : rod end external thread | $118.80 Current Valid Price | $134.24 | |
| 1476284 | CG1FA80-85Z | pad buffer:Rc Air buffer:M5X0.8/Rc Rod end thread shape : rod end external thread | $118.80 Current Valid Price | $134.24 | |
| 1476285 | CG1FA80-125Z | pad buffer:Rc Air buffer:M5X0.8/Rc Rod end thread shape : rod end external thread | $122.57 Current Valid Price | $138.5 | |
| 1476286 | CG1FA80-150Z | pad buffer:Rc Air buffer:M5X0.8/Rc Rod end thread shape : rod end external thread | $126.34 Current Valid Price | $142.76 | |
| 1476287 | CG1FA80-175Z | pad buffer:Rc Air buffer:M5X0.8/Rc Rod end thread shape : rod end external thread | $133.71 Current Valid Price | $151.09 | |
| 1476288 | CG1FA80-190Z | pad buffer:Rc Air buffer:M5X0.8/Rc Rod end thread shape : rod end external thread | $133.71 Current Valid Price | $151.09 | |
| 1476289 | CG1FA80-200Z | pad buffer:Rc Air buffer:M5X0.8/Rc Rod end thread shape : rod end external thread | $133.71 Current Valid Price | $151.09 | |
| 1476290 | CG1FA80-230Z | pad buffer:Rc Air buffer:M5X0.8/Rc Rod end thread shape : rod end external thread | $141.09 Current Valid Price | $159.43 | |
| 1476291 | CG1FA80-250Z | pad buffer:Rc Air buffer:M5X0.8/Rc Rod end thread shape : rod end external thread | $141.09 Current Valid Price | $159.43 | |
| 1476292 | CG1FA80-125JZ | pad buffer:Rc Air buffer:M5X0.8/Rc Rod end thread shape : rod end external thread | $148.29 Current Valid Price | $167.57 | |
| 1476293 | CG1FA80-275Z | pad buffer:Rc Air buffer:M5X0.8/Rc Rod end thread shape : rod end external thread | $148.63 Current Valid Price | $167.95 | |
| 1476294 | CG1FA80-300Z | pad buffer:Rc Air buffer:M5X0.8/Rc Rod end thread shape : rod end external thread | $148.63 Current Valid Price | $167.95 | |
| 1476295 | CG1FA80-255Z | pad buffer:Rc Air buffer:M5X0.8/Rc Rod end thread shape : rod end external thread | $148.63 Current Valid Price | $167.95 | |
| 1476296 | CG1FA80-150JZ | pad buffer:Rc Air buffer:M5X0.8/Rc Rod end thread shape : rod end external thread | $152.06 Current Valid Price | $171.83 | |
| 1476297 | CG1FA80-310Z | pad buffer:Rc Air buffer:M5X0.8/Rc Rod end thread shape : rod end external thread | $156.00 Current Valid Price | $176.28 | |
